Geyser Gecko
Save on your geyser electricity usage
The Geyser Gecko is your answer to a hybrid solar geyser.
- Uses solar panels to heat up your existing electrical geyser (up to 4 kW geyser elements supported).
- Can be set up to operate as a hybrid between AC and PV power.
- Can be monitored and configured remotely by using the Geyser Gecko mobile companion app.
Easy Installation

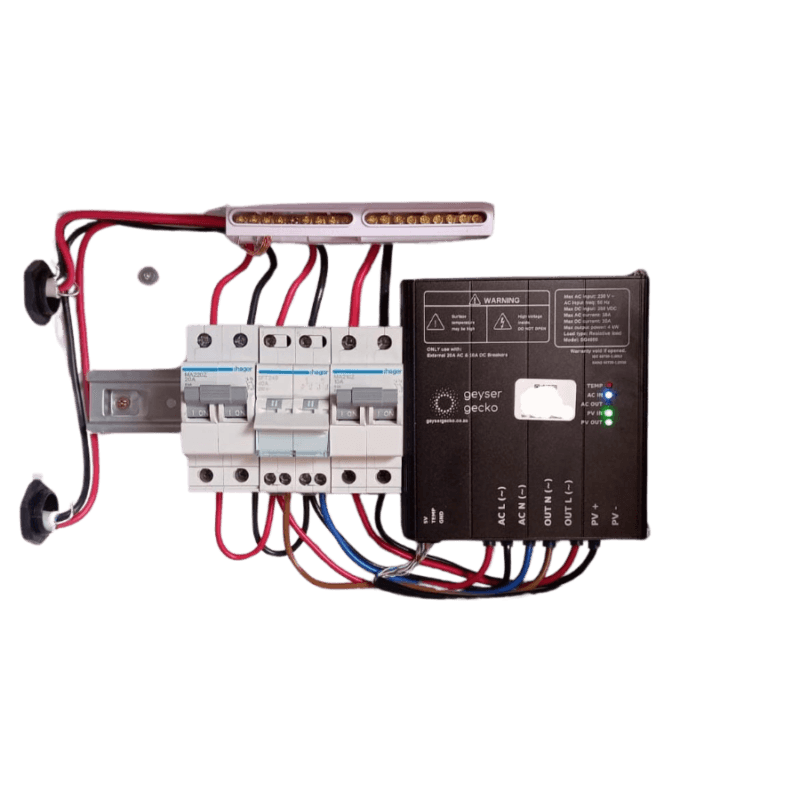

The Geyser Gecko can be installed into existing electrical geyser installations and does not require a different geyser element.

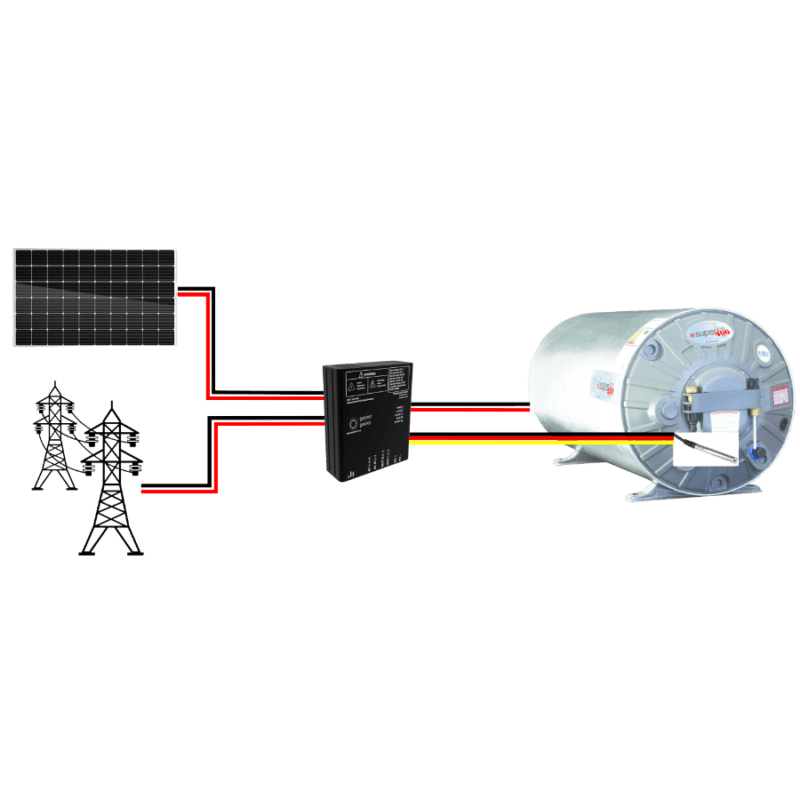

The Geyser Gecko uses solar panels to heat up your existing electrical geyser (up to 4 kW geyser element). It can be set up to operate as a hybrid between AC and PV power, where AC power is partially used to heat up the water and the solar panels heats it up further. It can also be used in PV only mode, where only solar panels are used to heat up the geyser.
Geyser Gecko is proudly manufactured in South Africa.
Description | Symbol | Value | Unit |
Electrical data | |||
Input Max AC Voltage (Grid) | ACINMAX | 230 | VRMS |
Input DC Voltage (Solar) | DCINMAX | 250 | VDC |
Input DC Power (Solar) | PMAX_IN | 1800 | W |
Max Output Power | PMAX | 4 | kW |
Max Current AC | IMAXac | 18 | A |
Max Current DC | IMAXdc | 10 | A |
Input Frequency (AC) | FAC | 50 | Hz |
DC polarity protection | – | Yes, max 10A | – |
Output voltage | ACOUT | 80-230 | VRMS |
Output frequency | FOUT | 125 | Hz |
Output duty cycle | DOUT | 40-80 | % |
Mechanical data | |||
Dimensions | 122(W) x 131(L) x 45(H) | mm | |
Weight | 0.5 | kg | |
Enclosure material | Anodized aluminium | – | |
Ambient conditions | |||
Operating temperature range | TOP | 0-40 | °C |
Operating humidity range | H | 0-80 | % |
Safety Certification | IEC 60730-1:2013 / SANS 60730-1:2016 (Click here to view certificate) | ||
Regulatory Compliance | |||
NRCS | RCC No: 2401002 | ||
