Dyness 5.12kWh 51.2V Battery

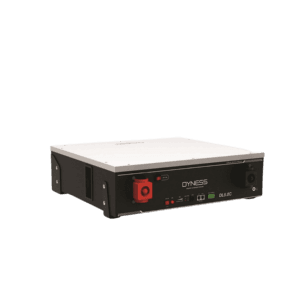

Dyness DL5.0C LifePo4 Battery (5.1kWh 100AH)

The Dyness DL5.0C LifePo4 Battery (5.12kWh 100AH) adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring, and provides multiple installation methods. It is scalable from 5.12kW -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.

Detailed Features

• High Capacity & Power Output:
  • 5.12kWh of stored energy and a 100Ah capacity, providing sufficient power for moderate residential and small commercial energy needs.
  • Delivers consistent power to run essential devices, including lights, refrigerators, and smaller appliances.
• Scalable System:
  • The DL5.0C is easily scalable, allowing users to expand their storage from 5.12kWh up to 256kWh by connecting multiple units in parallel.
  • This flexibility makes it ideal for applications that may require increased energy storage over time, such as growing residential needs or expanding small businesses.
• Long Cycle Life:
  • With over 4,000 cycles at 80% Depth of Discharge (DoD), the DL5.0C is built for longevity and performance. This significantly reduces the frequency of battery replacements, making it a cost-effective option in the long run.
  • It offers an expected lifespan of up to 10+ years under proper usage conditions.
• Compact & Efficient Design:
  • The compact, lightweight design of the DL5.0C makes it easy to install and space-efficient, whether mounted on a wall or placed on the ground.
  • Ideal for both indoor and outdoor applications, it is built to withstand various environmental conditions with an IP65 rating, ensuring protection from dust and water.
• Advanced Battery Management System (BMS):
  • Equipped with a smart Battery Management System (BMS) that ensures optimal charging, discharging, and overall battery health.
  • The BMS protects against overcharging, over-discharging, short circuits, and temperature extremes, ensuring maximum safety and efficiency.
• Safe and Eco-Friendly Technology:
  • The LiFePO4 chemistry is known for its excellent safety features, including thermal stability and low risk of fire or explosion, compared to other lithium-based batteries.
  • It is also non-toxic and recyclable, making it an environmentally friendly choice.
• Wide Application Compatibility:
  • The DL5.0C is designed to work seamlessly with a variety of solar power systems and hybrid inverters. Whether you’re integrating it with a new solar system or upgrading an existing one, the battery is compatible with many popular inverter brands.
  • Perfect for both off-grid and grid-tied applications, the DL5.0C supports solar energy storage, backup power, and load-shifting capabilities.

Technical Specifications

• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Cell Voltage: 3.2V
• Nominal Voltage: 51.2V
• Rated Capacity: 5.12kWh
• Nominal Capacity: 100Ah
• Life Cycle: Up to 4,000 cycles at 80% Depth of Discharge (DoD)
• Protection Features: Overcharge, over-discharge, short-circuit, and thermal protection.
• Monitoring: Real-time data monitoring for voltage, current, temperature, and status.
• Charge Temperature Range: 0°C to 55°C
• Discharge Temperature Range: -20°C to 55°C
• Inverter Compatibility: Works with a wide range of hybrid and off-grid inverters, including major brands like Victron, Growatt, Deye, LuxPower, and Sunsynk.

Applications of The Dyness DL5.0C LifePo4 Battery (5.12kWh 100AH)

• Residential Use:
  • Ideal for homes looking to store solar energy during the day for use at night, reducing reliance on the grid and lowering electricity bills. It also provides backup power during grid outages, ensuring a continuous supply for essential appliances.
• Small Commercial Use:
  • A great solution for small businesses requiring reliable, affordable energy storage. It can help reduce operating costs by utilizing stored energy during peak demand periods or when grid electricity is expensive.
• Off-Grid Systems:
  • Perfect for off-grid living where access to the electrical grid is limited or unavailable. The DL5.0C can be integrated into off-grid solar systems to ensure reliable energy storage and power availability.
• Backup Power:
  • Provides an excellent backup power solution, maintaining essential systems and equipment during power failures, ensuring minimal disruption to daily operations.

Why Choose The Dyness DL5.0C LiFePO4 Battery?

• Economical & Scalable: With a cost-effective price point and scalable capacity, the DL5.0C offers a long-term investment for homeowners and businesses alike.
• Durable & Reliable: Built to last for over a decade with minimal maintenance, offering excellent performance in a wide range of applications.
• Safe & Environmentally Friendly: With advanced safety features and an eco-friendly design, it’s a responsible choice for both users and the planet.
• High Performance: Maximizes energy storage and usage, offering superior efficiency for both residential and commercial applications.

See Datasheet
