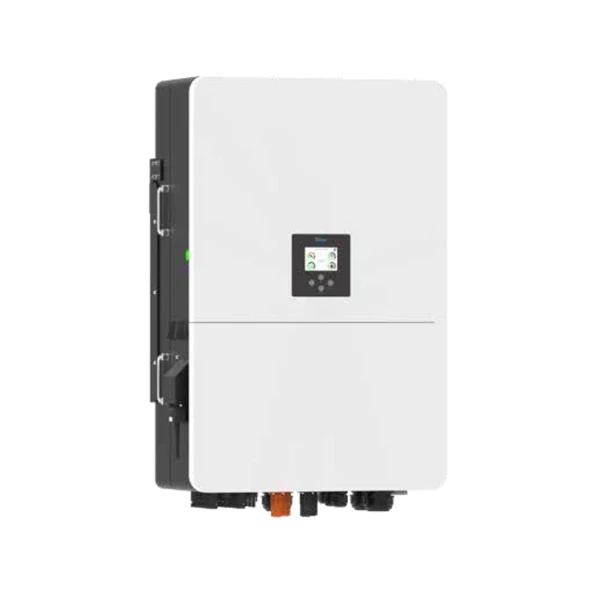

Deye 80Kw High Voltage Three-Phase Hybrid Inverter
The SUN-80K-SG02HP3-EU-EM6 is a high-performance three-phase hybrid inverter designed for both residential and commercial solar energy systems. It supports multiple battery types, large-scale PV input, and advanced energy management features, making it ideal for high-demand installations. This inverter also supports AC coupling, unbalanced phase output, and generator compatibility for enhanced energy reliability and flexibility.
Product Features:
- Supports high-voltage lithium-ion batteries (160–1000V)
- Max charging/discharging current of 160A (80 + 80)
- AC coupling to retrofit existing systems
- Diesel generator compatibility
- Up to 10 inverters in parallel for on-grid/off-grid systems
- 100% unbalanced load support per phase
- 6 configurable time periods for battery charge/discharge
- Peak power delivery: 1.5x rated power for 10 seconds
- Multiple communication interfaces: RS485/RS232/CAN, optional GPRS/Wi-Fi/Bluetooth/4G/LAN
- Advanced protection features, including arc fault detection (optional)
- IP65-rated enclosure for outdoor installation
Specifications:
Battery Input:
- Battery Type: Lithium-ion
- Battery Voltage Range (V): 160–1000 V
- Max. Charging Current (A): 80+80
- Max. Discharging Current (A): 80+80
- Battery Inputs: 2
- Charging Strategy: Self-adaption to BMS
PV Input:
- Max. PV Input Power: 160,000 W
- Max. PV Voltage: 1000 V
- Start-up Voltage: 180 V
- MPPT Voltage Range: 150–850 V
- Rated PV Voltage: 650 V
- No. of MPP Trackers / Strings: 6 / 2+2+2+2+2+2
- Max. Operating PV Current: 36+36+36+36+36+36
- Max. Short-Circuit Current: 54+54+54+54+54+54
AC Input/Output:
- Rated Power (AC): 80,000 W
- Max. Apparent Power (VA): 88,000 VA
- Rated AC Input/Output Current (A): 121.3/115.9
- Max. AC Input/Output Current (A): 133.4/127.6
- Max. Continuous AC Passthrough (grid to load) (A): 200
- Peak Power (off-grid) (W): 1.5 times of rated power, 10s
- Power Factor Range: 0.8 leading to 0.8 lagging
Efficiency:
- Max Efficiency: 97.6%
- Euro Efficiency: 97.0%
- MPPT Efficiency: >99%
See DATASHEET
