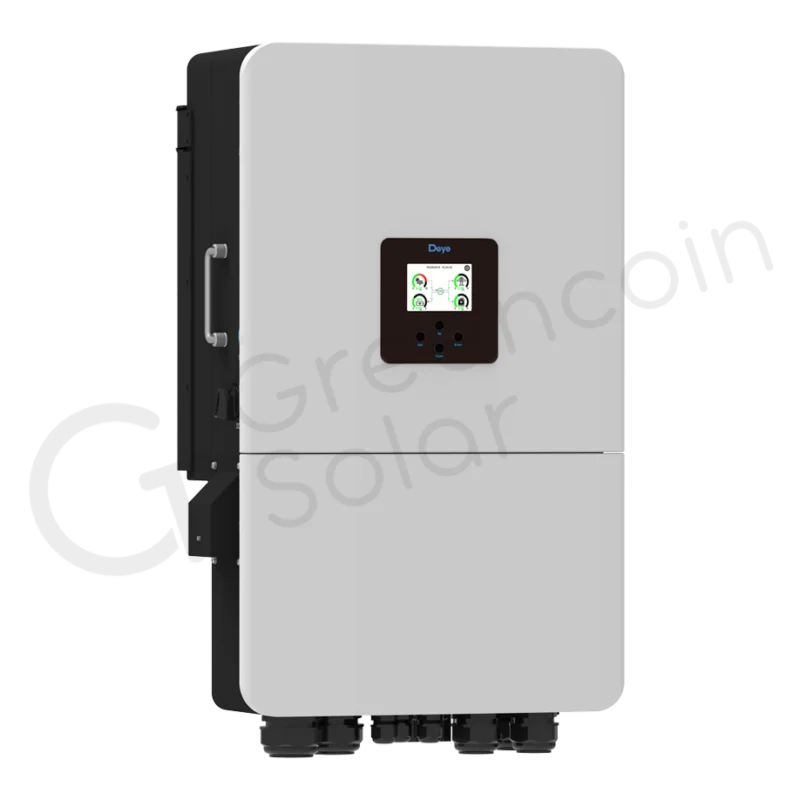

The Deye 20kW LV 3-Phase Inverter is a groundbreaking energy solution designed for large residential, commercial, and industrial applications. Engineered with cutting-edge SiC MOSFET power semiconductors, this inverter delivers exceptional efficiency, scalability, and performance, setting a new benchmark in the industry. Whether you’re looking for energy independence, grid support, or reliable backup power, this inverter provides a seamless integration of solar, battery storage, and grid connectivity.
Deye 20kW LV 3-Phase Inverter Features & Advantages:

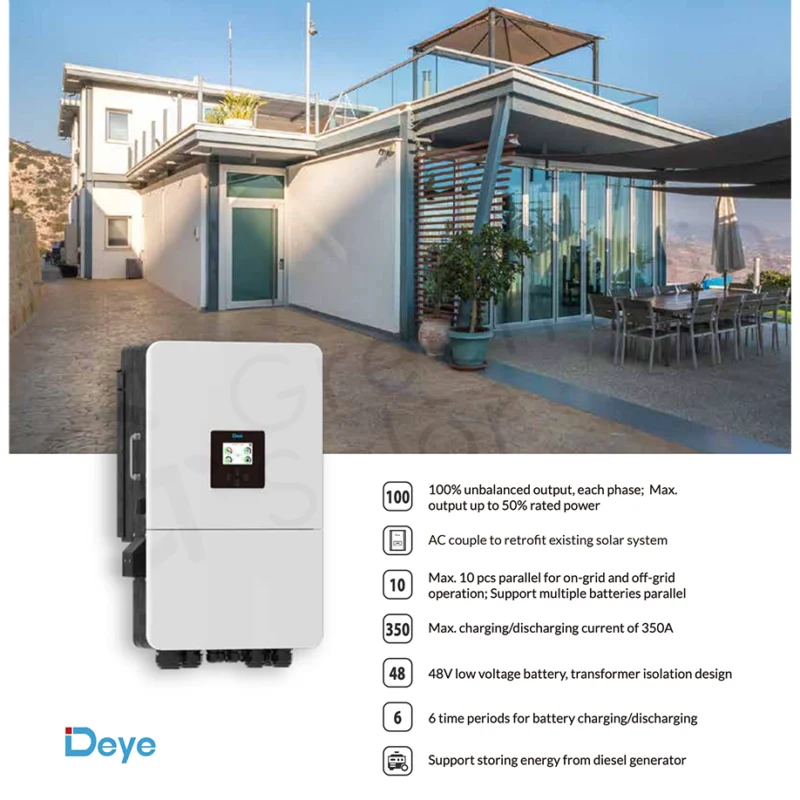

- Next-Gen Power Efficiency
- SiC MOSFET Technology enhances performance while reducing product size.
- Up to 20kW AC Output Power with 1.1x power boost capability.
- 20A+20A PV Input Current, supporting the latest high-power PV modules.
- Advanced Hybrid Functionality
- Works on-grid and off-grid, offering full flexibility for energy management.
- Low Voltage 48V Battery Support, providing a cost-effective and safe storage solution.
- Expandable storage without requiring a BMS box for enhanced compatibility.
- 350A Maximum Charging/Discharging Current, ensuring faster battery charging and efficient energy retrieval.
- Smart Monitoring & User-Friendly Operation
- WiFi & Remote Monitoring for real-time tracking via mobile apps or web platforms.

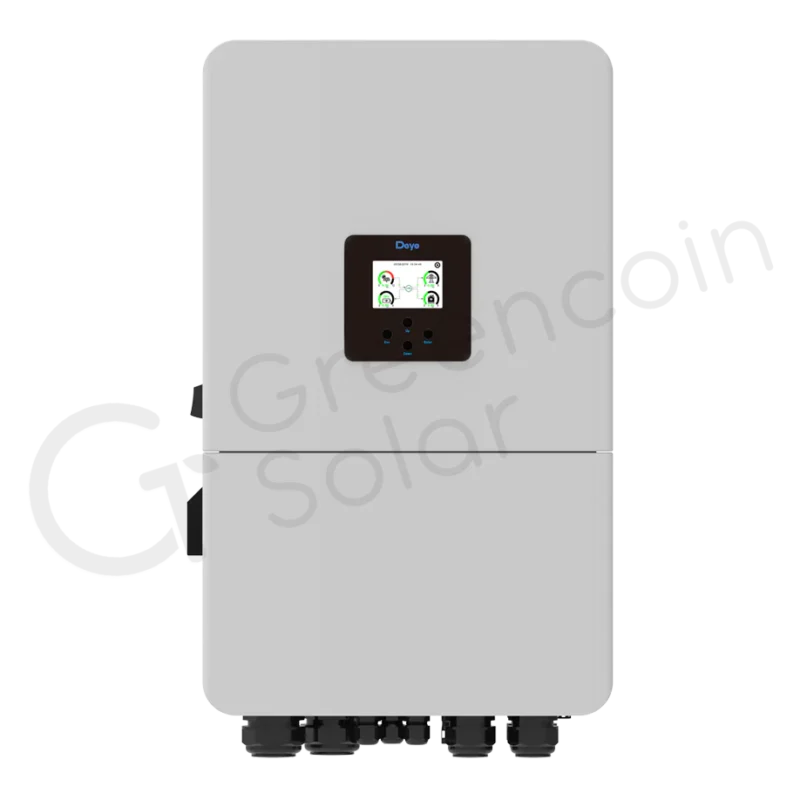

- Touchscreen with Plexiglas Panel for durability and easy operation.
- 6 Programmable Battery Charging/Discharging Time Periods for optimised energy usage.
- Robust & Scalable Design
- Supports Parallel Operation (Up to 10 Units) for large-scale installations.
- 100% Unbalanced Output per Phase, ensuring stable energy distribution.
- Compatible with Diesel Generators, allowing hybrid energy backup solutions.
- AC Coupling with Micro-inverters & String Inverters, making it ideal for both retrofits and new installations.
- Durability & Easy Installation
- Sleek, modern design with a screw-free front panel for enhanced aesthetics.

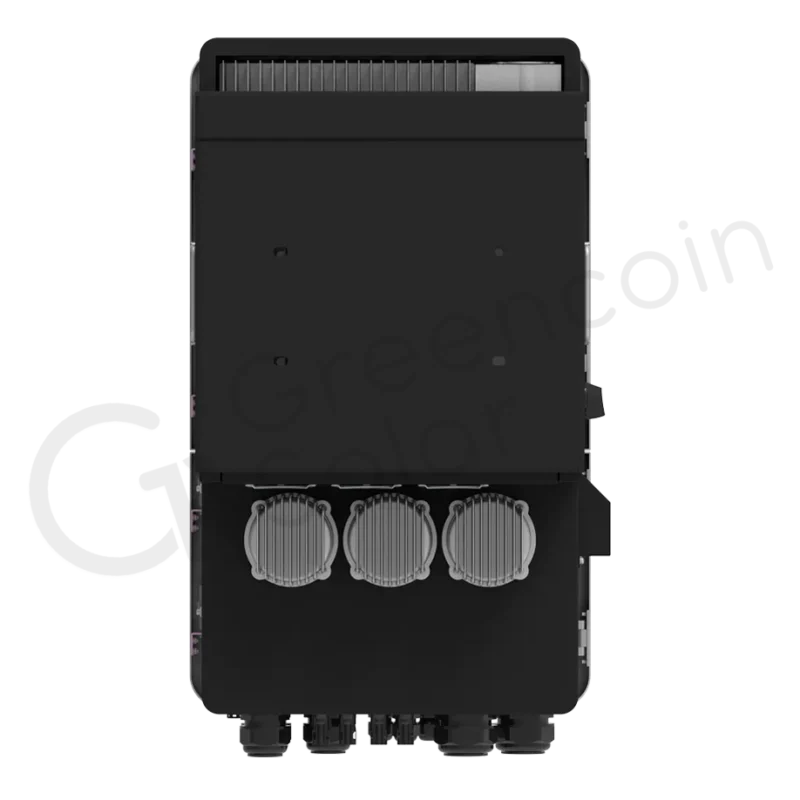

- Flip-cover wiring area for simplified setup and maintenance.
- Built to withstand diverse environmental conditions for long-lasting reliability.
Industry Recognition & Certifications
The DEYE SUN-20K-SG05LP3 was introduced as the world’s first 20kW low-voltage 3-phase hybrid inverter and has been showcased at top solar exhibitions, including Intersolar Europe and SNEC. It has also received the IEC62109 certification, solidifying its position as a leading-edge solar innovation.
Technical Specifications:
- Rated AC Output: 20kW
- PV Input Power: Up to 30kW
- Battery Type: 48V Lithium/Lead-Acid
- Battery Voltage Range: 40-60V
- Charge/Discharge Current: Max. 350A
- On-Grid & Off-Grid Switching Time: 4ms
- Communication Interfaces: WiFi, RS485, CAN
- Operating Temperature Range (℃): -40 to +60℃, >45℃ Derating
- Noise: <60 dB
- Parallel Operation: Up to 10 units
Deye 20kW LV 3-Phase Inverter is ideal for…
- Large residential homes with high energy demand
- Commercial businesses looking to reduce electricity costs
- Industrial operations requiring stable, scalable power solutions
- Hybrid energy setups that integrate solar, battery storage, and grid power
Why Choose the Deye 20kW Low Voltage 3-Phase Inverter?
With unmatched efficiency, intelligent energy management, and seamless integration, this inverter is the ultimate choice for businesses and homeowners looking to take control of their energy future. Its state-of-the-art technology, smart monitoring, and flexible battery storage ensure long-term reliability and significant cost savings.
Need more information?
View the Deye 20kW Inverter LV 3-Phase User Manual
View the Deye 20kW Hybrid Inverter LV 3-Phase Datasheet
