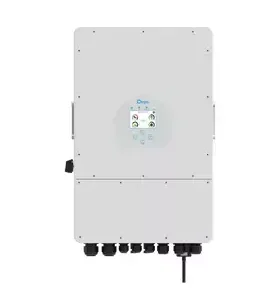

Deye 12kw Inverter – 1 Phase
SUN 12/14/16K-SG, a hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impedance. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
It is equipped with RS485/CAN port for battery communication.
- Colourful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 290A
- Support storing energy from diesel generator
- AC couple to retrofit existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Technical Information:
- Max. Charging Current: 220A
- Max. DC Input Power: 15600W
- Rated AC Input/Output Active Power: 12000W
- Rated AC Input/Output Current: 54.5/52.2A
- Max. AC Input/Output Current: 60/57.4A
