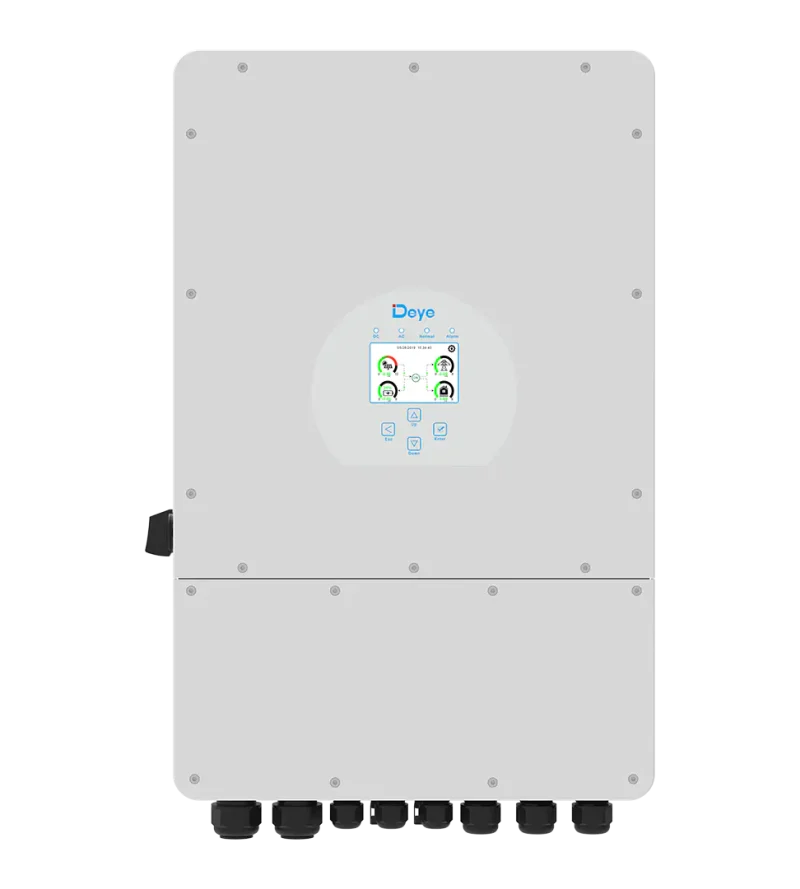

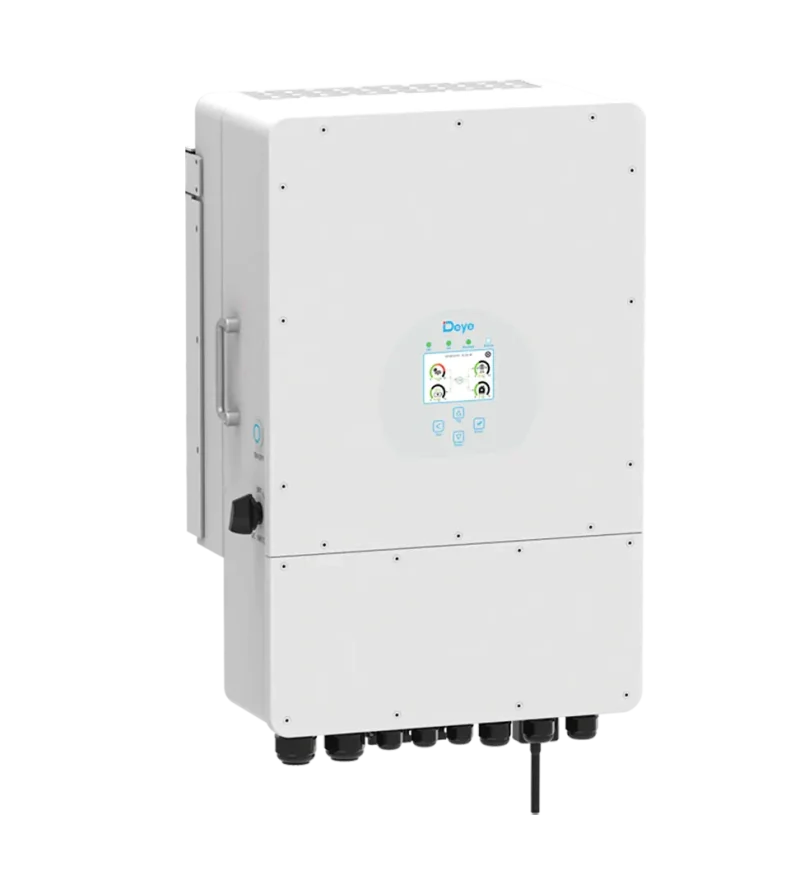

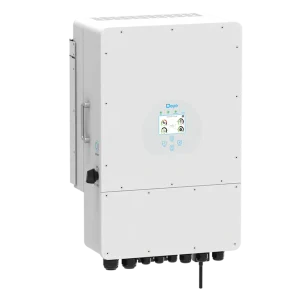

The Deye 10kW Hybrid Inverter (SUN-10K-SG04LP3-EU)is an advanced solar energy management solution designed for residential, agricultural, and small commercial applications. It seamlessly integrates solar PV, battery storage, and grid power to deliver maximum efficiency, energy independence, and uninterrupted power supply.
Key Features of the Deye 10kW Hybrid Inverter
- Hybrid Functionality – Grid-Tied, Off-Grid, and Backup
- Operates in grid-tied, off-grid, or hybrid mode.
- Optimises solar self-consumption and reduces electricity bills.
- Ensures uninterrupted power during outages with UPS functionality.
- Powerful 10kW Output
- Suitable for large households, farms, and small businesses.
- Can power multiple high-demand appliances such as HVAC systems, fridges, pumps, and office equipment.
- Intelligent Battery Storage & Management
- Compatible with 48V lithium-ion and lead-acid batteries.
- Smart charging and discharging strategy to prolong battery life.
- Supports peak shaving to lower grid usage during high tariff periods.
- High PV Input for Maximum Solar Harvesting
- Dual MPPT with up to 13kW PV input capacity.
- Wide PV voltage range (150V–500V) for flexible solar panel configurations.
- MPPT efficiency >99% for optimal energy conversion.
- Advanced Monitoring & Control
- WiFi, RS485, CAN, and USB communication.
- Remote monitoring via Deye app and web platform.
- LCD touchscreen display for real-time system status.
- Robust Safety & Reliability
- Built-in surge, overvoltage, overload, and short-circuit protection.
- Intelligent air cooling with IP65 weatherproof design.
- Fully compliant with IEC/EN 62109 safety standards.
Technical Specifications
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range (V): 40-60V
- Max. Charging Current (A): 250V
- Max. Discharging Current (A): 250
- Charging Strategy for Li-ion Battery: Self-adaption to BMS
- Max PV Access Power (W): 2400
- Max PV Input Power (W): 19200
- Max Input Voltage (V): 500V
- Start-up voltage (V): 125V
- MPTT: Voltage Range (V): 150-425V
- Rated PV Input Voltage: 370V
- Peak Power (Off-grid) (W): 2 times of rated power
- Max Efficiency: 97.6%
- MPTT Efficiency: > 99%
- Communication Interface: RS485/RS232/CAN
- Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)
- Operating Temperature Range (°C): -40 to +60°C, >45°C Derating
- Ingress Protection(IP) Rating: IP 65
- Type of Cooling: Intelligent Air Cooling
- Warranty: 5 Years/10 Years
- Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Applications
- Residential Solar Systems – Reduce grid reliance, power EV chargers, and keep essentials running during outages.
- Agriculture & Farming – Run pumps, irrigation, and cold storage with solar + battery backup.
- Small Businesses – Keep lights, computers, and machinery operational during load shedding.
- Off-Grid Locations – Perfect for lodges, cabins, and rural electrification projects.
Why Choose the Deye 10kW Single-Phase Hybrid Inverter?
- Energy independence with solar + battery integration.
- Future-ready for net metering and smart grid use.
- Durable & efficient with proven long-term reliability.
Need more information?
View the Deye 10kW DATASHEET
