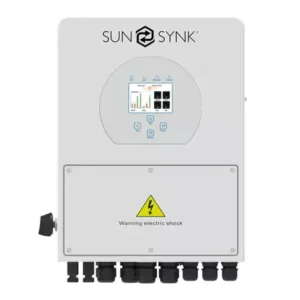

The new Sunsynk 16kW Hybrid Inverter is the most powerful low-voltage inverter in the world, achieving a maximum output power of 16kW and a battery charge current of 275A. This power management tool allows the user to hit those ‘parity’ targets by managing power flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.
Manages power flow from multiple sources such as Solar, Main Power (Grid) and generators, then effectively storing & releasing power as & when utilities require.
Sunsynk 16kW Hybrid Inverter Features
The largest single-phase hybrid Inverter on the market.
A total of 15 x inverters can be connected in a three-phase configuration (five units per phase) – giving a maximum power output of 240kW.
3 x inverters can be connected in a single-phase configuration giving a total power of 48kW.
Contains 3 x MPPTs to allow for flexible PV array designs and improved efficiency.
Programmable multiple operation modes: on-grid/off-grid & UPS.
IP65 protection rating – suitable for most outdoor installations.
Wi-Fi dongle as standard – enabling remote monitoring via the Sunsynk cloud
INTERACTIVE
Supporting Wi-Fi or GSM monitoring
Visual power flow screen
Parallel / multi invert function grid-tied and off-grid
COMPATIBLE
Compatible with main electrical grid voltages or power generators
Self-consumption and feed-in to the grid
Auto restart while AC is recovering
Auto earth bond feature (Via a relay)
CONFIGURABLE
Fully programmable controller
Programmable supply priority for battery or grid
Programmable multiple operation modes: on-grid/off-grid & UPS
Configurable battery charging – current/voltage based on the application
Configurable AC / solar / generator charger priority by LCD setting
SECURE
Overload/over-temperature/short-circuit protection
Smart battery charger design for optimized battery protection
Limiting function installed to prevent excess power overflow to grid
Specifications
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range 43~60V
Max. Charging Current 275A
Max. Discharging Current 300A
Charging Curve 3 Stages/Equalisation
External Temperature Sensor Yes
Charging Strategy for Li-Ion Battery Self-Adaptation to BMS
PV String Input Data
Max. DC Input Power 18000W
Max PV Input Voltage 450V
MPPT Range 250V~450V
Start-up Voltage 150V
PV Input Current 22A + 22A
Max. PV Isc 26A + 26A
No. of MPPT / Strings Per MPPT 3 / 2
AC Output Data
Max. On-Grid AC Power 16000W
Max. Off-Grid AC Power 13000W
Peak Power (off-grid) 2 times of rated power, 10 S
AC Output Rated Current 65A
Max AC Current 70A
Max Continuous AC Passthrough 200A
Frequency Range 45Hz ~55Hz
Voltage Range 211V ~ 264V
Grid Type Single-Phas
Current Harmonic Distortion THD
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated – PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Surge protection
Certifications and Standards
Grid Regulation – VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699:2011, XP C15-712-3:2019-05
Safety EMC / Standard – IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3
General Data
Operating Temperature Range -25~55 C
Cooling Fan
Noise Communication with BMS RS485; CAN
Protection Degree IP65
Installation Style Wall-mounted
What’s in the box
1x Inverter + manuals
